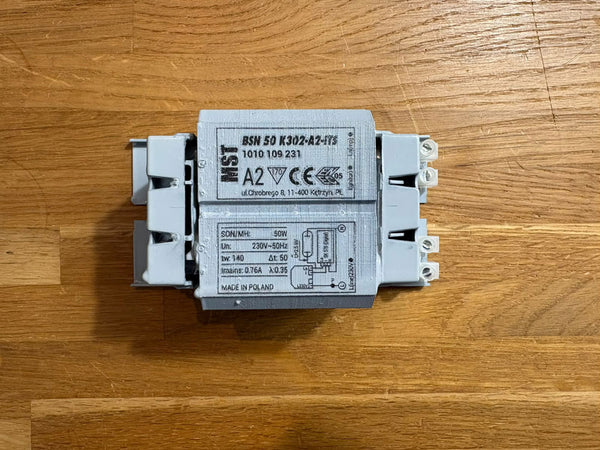

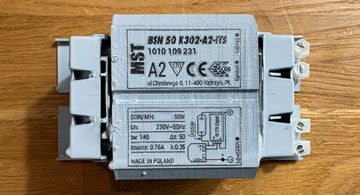

BSN 50 K302-A2-ITS 230V 50Hz BC1-118 1010 109 23146 ballast voor SON/MH 50W
Geschikte lamptypen:
SON, SON-I, SON-T, SON-T PIA Plus, NAV, NAV-E en NAV-T 50 W, mits de lamp een nominale bedrijfsstroom van circa 0,75–0,76 A heeft en de overige voorschakel-/ontstekervereisten overeenkomen.
Te gebruiken icm:
Condensator: CAP 10µF 250V G2 50/60Hz ±5% Capacitor condensator Klik hier voor dit artikel
Starter: NI 70 S 4K 220-240V 50/60Hz Ignitor SON 35..70W Klik hier voor dit artikel
Conventional systems
HID ballasts
Basic ballasts for SON/MH lamps
230V, 50Hz, copper windings, with thermal protection, A2 Class
Basic ballasts for high pressure sodium and metal halide lamps
Impregnated electromagnetic ballasts
Screw terminal blocks
For use in combination with semi-parallel or series ignitors
Windig temperature Tw = 140°C
Power [W] 50
Lamps SON/MH
Lamp current [A] 0.76
Delta T [°C] 50
Tw [°C] 140
Weight [kg] 1.26
Capacitor [μF] 10
Energy Efficiency Class A2
Dimensions: A1 [mm] 118
Dimensions: A2 [mm] 94
Dimensions: B1 [mm] 61
Dimensions: C1 [mm] 52
