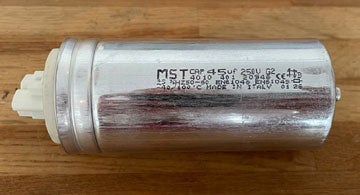

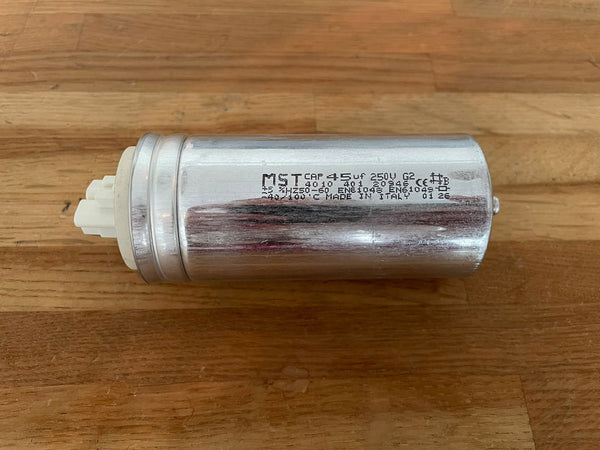

CAP 45µF 250V G2 50/60Hz ±5% GEN.2 Capacitor condensator
CAP 45uF 250V G2 50/60Hz
Capacitors GEN.2
Power factor capacitors for use in discharge lamp circuits.
Main characteristics:
Type B, aluminium housing
Low inductance
Push-in terminal (Wago 214 terminal) or cable (2x0,75mm²)
Self-healing ability
Overpressure safety break-action mechanism
Discharge resistor
Requirement a clearance of at least 10mm above the terminals to ensure proper activation break action mechanism
Technical data:
Tolerance of capacitance: ±5%
Rated frequency: 50/60Hz
Relative humidity in capacitor environment at 20÷25°C:
75% (annual average)
95% (max value within 30 days)
95% (max value within 30 days)
Service life: 30000h
Condensation: Not permitted
Dissipation factor (tgd): ≤ 0,0015 at 50Hz/250V
Dielectric strength:
- between terminals: 2U_N/50Hz - 2sec.
- between terminals connected together and case: 2kV / 50Hz - 2sec
Diameter D 45 [mm]
Length L 98 [mm]
