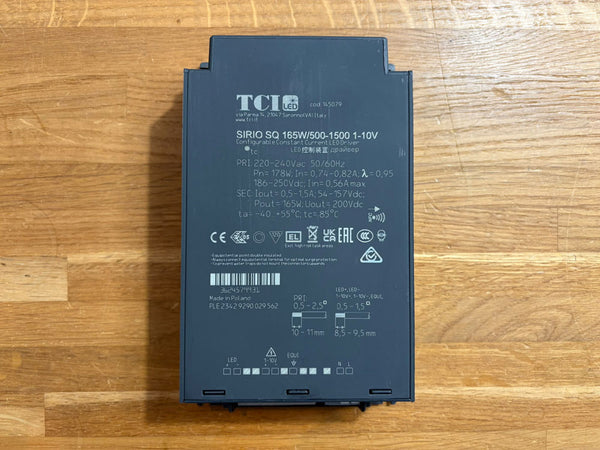

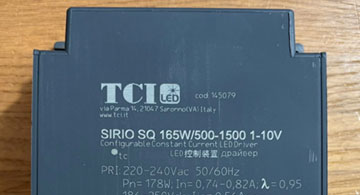

TCI SIRIO SQ 165W/500-1500 1-10V cod. 145079 LED Driver EAN 8010703835368
Professionele TCI SIRIO SQ LED-driver van 165W, geschikt voor een uitgangsstroom van 500–1500 mA en voorzien van 1-10V dimregeling. Ideaal voor betrouwbare en nauwkeurige aansturing van Ledverlichting in professionele toepassingen.
Rated Voltage
220...240 V
Dimming:
1-10V only
MIDNIGHT Function
CLO (Constant Lumen Output)
Features
Ultra high input spikes protection up to 10kV.
0/1-10V interface insulatetd from secondary side.
Programmable multipower driver.
Driver for built-in use.
It can be used for lighting equipment in protection class I and II.
Active Power Factor Corrector.
Analogical input for thermal sensor connection.
Current regulation ±5 % including temperature variations.
Input and output terminal blocks on same side (wire cross-section 0,5...1,5 mm2).
Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
Thermal protection = C.5.e.
