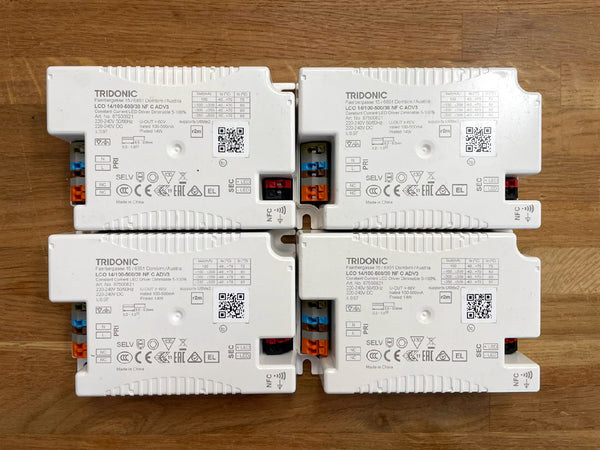

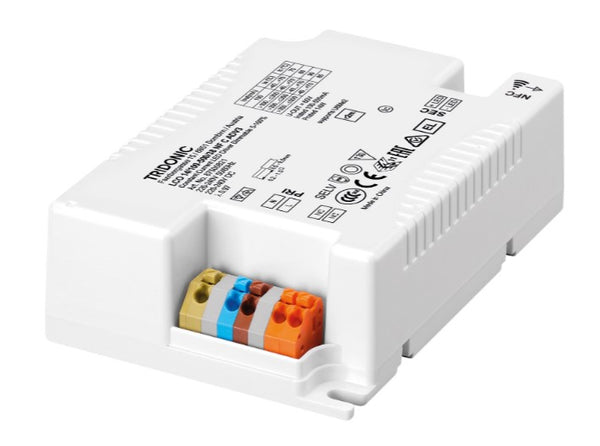

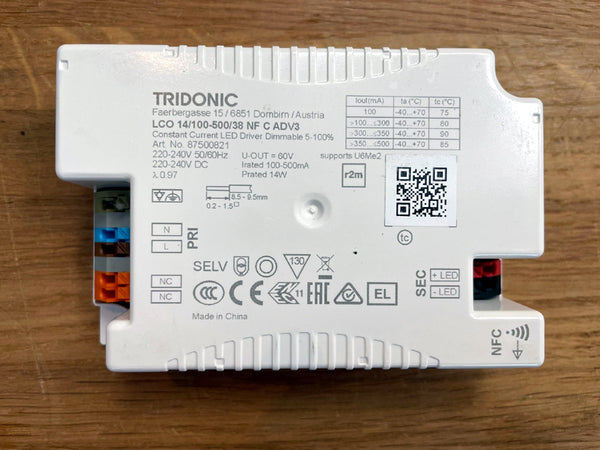

Tridonic LCO 14/100-500/38 NF C ADV3 compacte constante-stroom LED-driver (constant current), bedoeld voor LED-verlichting. Onderdeel van de ADV3 / NFC C serie van Tridonic. Onderstaand de uitgebreide omschrijving en specificaties:
Driver LCO 14W 100–500mA 38V NF C ADV3
LED drivers advanced NFC outdoor series
Outdoor compact dimming
Article number: 87500821
Ean code 9006210685571
Fabrikantnaam LCO 14/100-500/38 NF C ADV3
Tridonic Compact LED Driver
220-240V 50/60Hz
220-240V DC
Product description
Dimmable built-in constant current outdoor LED driver
Dimming range 5 – 100 % (min. 5 mA)
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
Output current adjustable between 100 – 500 mA via NFC or ready2mains Programmer
Max. output power 14 W
Up to 87 % efficiency
Lowest power input on stand-by < 0.16 W
Interfaces
Near field communication (NFC)
ready2mains (configuration via mains)
U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)
Terminal blocks: 45° push terminals
Functions
Adjustable output current in 1-mA-steps (NFC, ready2mains)
Programmable chronoSTEP: times and levels (NFC, U6Me2)
Dimming through mains voltage (inputDIM)
Enhanced constant light output function (eCLO)
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Intelligent Temperature Guard (ITG)
Intelligent Voltage Guard Plus (IVG+)
Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
Flexible configuration via companionSUITE (NFC, ready2mains™) or U6Me2 programmer
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
In-field programming possible after installation with NFC interface and ready2mains
High overvoltage protection: up to 10 kV asymmetric (protection class I and II)
Integrated ESD protection
Typical applications
Road, street and industry
EAN/UPC: 9006210685571
Country of Origin: CN
Customs tariff No.: 85044095
SCIP.: dd38902c-20f1-48f4-ba66-5982b8feead2
