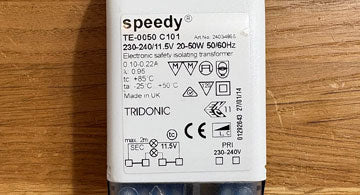

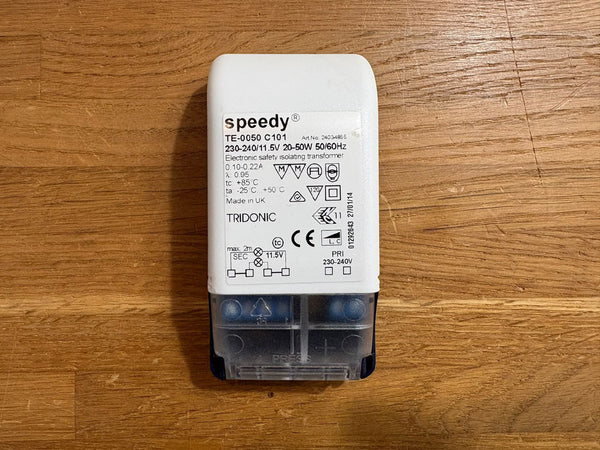

Tridonic Speedy TE-0050 C101 24034855 230-240/11.5V 20-50W 50/60Hz EAN 501884000000 is een elektronische, dimbare transformator voor laagspanningshalogeenlampen. De transformator zet 230–240 V wisselspanning om naar circa 12 V en is geschikt voor een belasting van 20–50 VA. De transformator ondersteunt dimmers met faseaansnijding en faseafsnijding.
Klik hier voor de uitgebreide productinformatie in pdf
Electronic safety isolating Halogen transformers for low-voltage halogen lamps
TE speedy
Dimming via leading-edge and trailing-edge phase dimmers
Product description
• Compact dimensions
• Short-circuit shutdown feature with automatic restart
• Overtemperature and overload protection with power regulation
• Large connection compartment
• Double assignment of the terminal possible
• Cage clamp terminals for rigid and flexible wires
• Double terminals on the secondary side
• Rapid installation of cable clamp and terminal cover, no tool required
• Casing: polycarbonate, dark blue/white
• Not suitable for operation with MR16 LED bulbs
Technical data
Mains voltage range 230 – 240 V
Mains frequency 50 / 60 Hz
Dimming Leading-edge and trailling-edge phase control
Soft-start < 1 s
λ > 0.95
Efficiency > 93 %
Max. cable length secondary 2 m
Protection class II
Type of protection IP20
